6*20ft flat pack container house building for living container
Description:

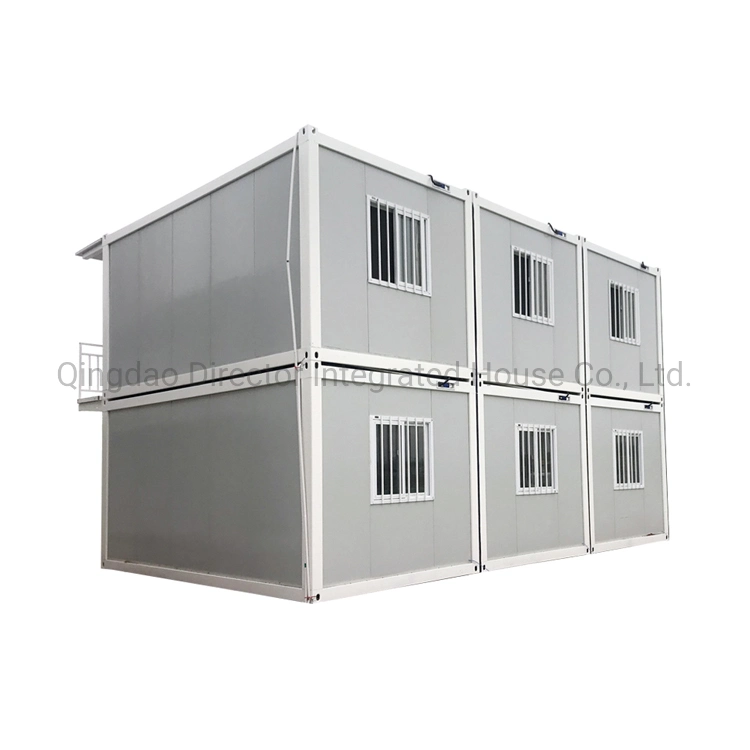

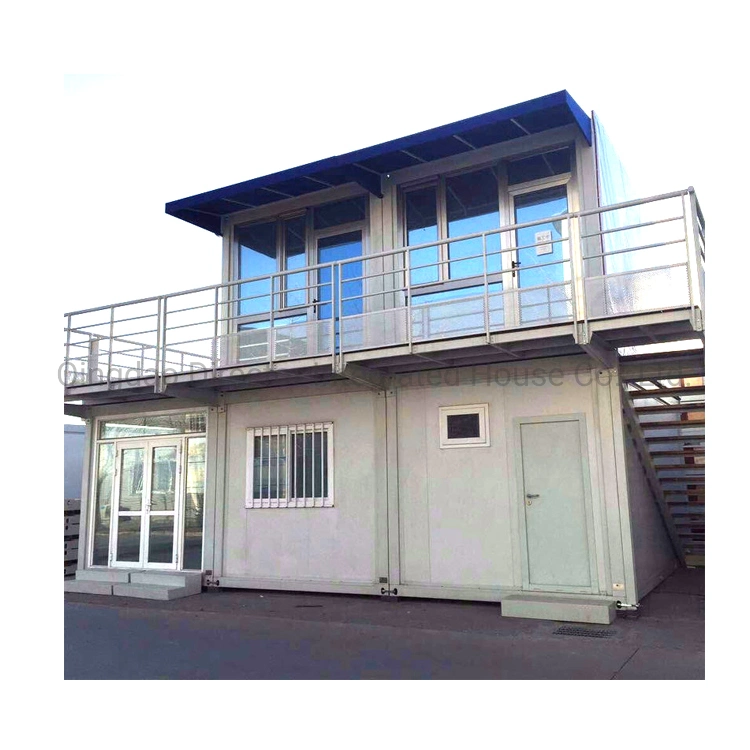

The flat pack container house is made of steel structure and sandwich panel for wall with PVC windows and
sandwich panel door.
It is heat proof, water proof.
Several flat packing containers can be fixed together for wider room.
It is widely used as office, meeting room, dormitory, shop, booth, toilet, shower room, stoarage, kitchen, etc.
Characteristics:
1. Flat packed to save transport cost
2. Convenient for lifting, fixing and compounding
3. Service life: 20 years
4. Can be transported easily as a unit after assembled.
5. The layout is customized.
6. ISO Standard corner fittings, fit for putting on other shipping
Technical parameter:
1. Size: 20ft, 38ft, 40ft or customized.
2. Wind resistance: grade 12
3. Wall permitted loading: 0.6Kn/m2
4. Roof permitted loading: 0.5Kn/m2
5. Coefficient of thermal conductivity: k=0.442W/m2
| Dimensions (L*W*H) | External | 6.058 x 2.438 x 2.591 | M |
| 20 x 8 x 8.5 | FT | ||
| Internal | 5.899 x 2.352 x 2.393 | M | |
| Inside Cubic Capacity | 33.2 | CBM | |
| Maximum Gross Weight | 30480 | KG | |
| Tare Weight | 2185 | KG | |
| Maximum Payload | 28295 | KG | |
| Allowable Stacking Weight | 192000 | KG | |
