Product description:

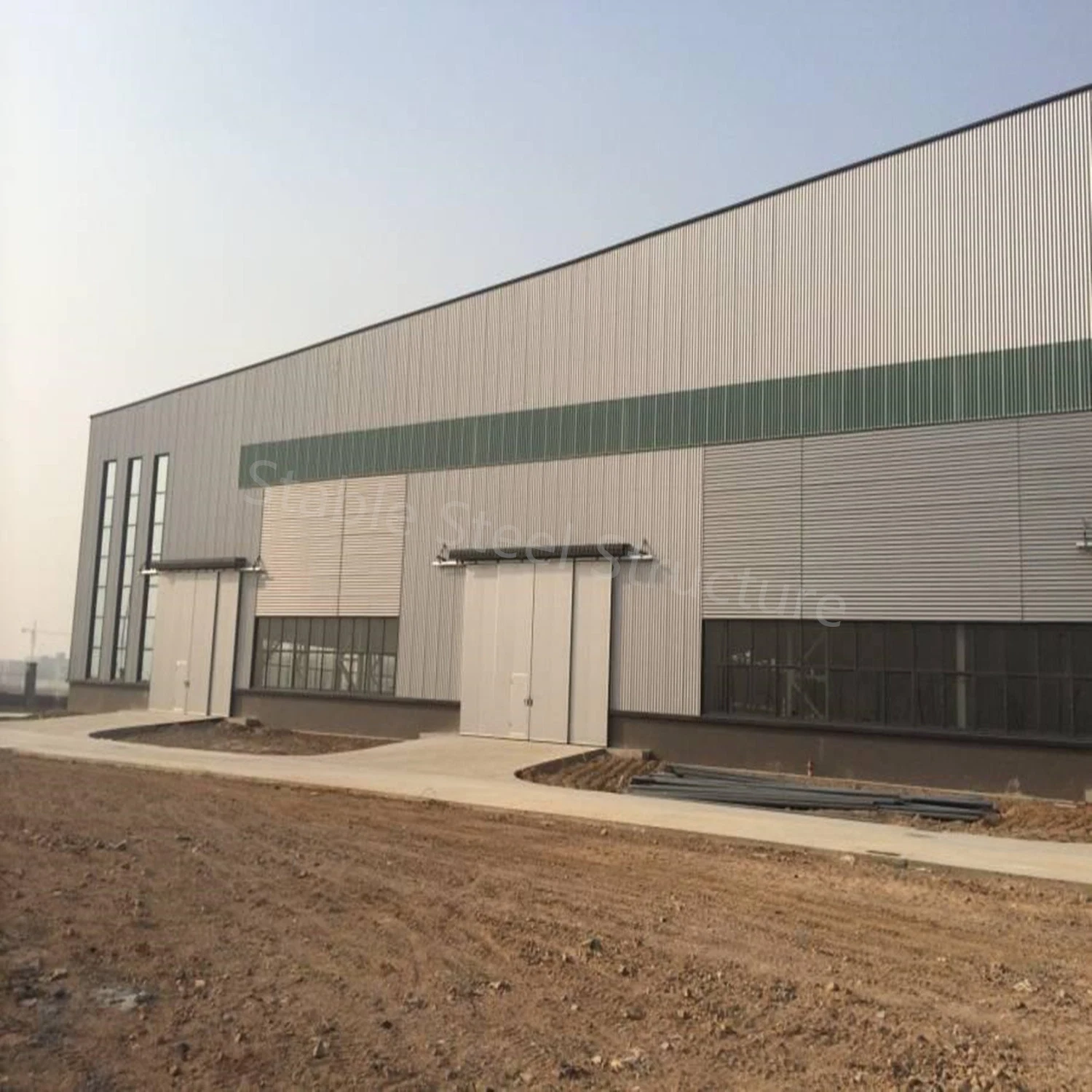

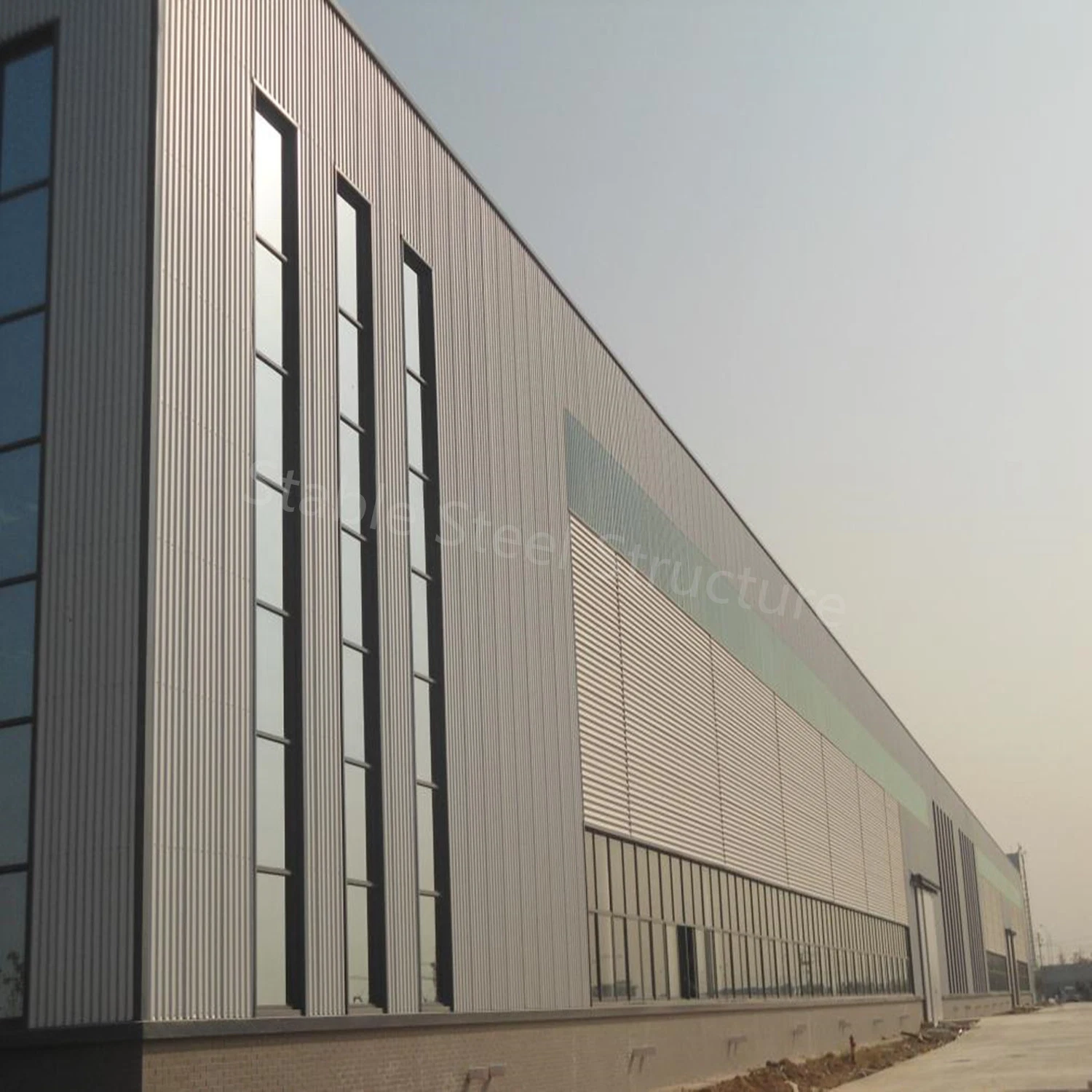

Modular steel warehouse is from Qingdao China is a new type of building structure system for workshop, warehouse, factory, storage house, etc. The main steel frame is formed by linking up Q235, Q345 steel H section, square tube, C section steel frame, and C section, Z section and U-section steel components, and the roof and wall using a variety of sandwich panels with thermal insulation or corrugated steel plate without thermal insulation.
2. Characters:1). Posesses a wide span, with either a single or multiple spans and can have a maximum span clearance distance in 36m without middle columns.
2). Low cost with unit price ranging from USD30 to USD60 per square meter FOB according to customer's requirements.
3). Fast construction and easy installation.
4). Has a long service life of more than 50 years.
5). The warehouses are also environmentally friendly, and have a stable structure. The buildings are earthquake resistance, water proof, and energy saving.
6). Widely application: the buildings aer widely used as industry factory building, warehouse, gymnasium, poultry shed, school and medical clinic, garage, hangar, etc.
3. Main components:
Main Steel Frame | H section or C section steel | Q345 steel 8mm/10mm |
2 | Welding | Automatic Submerged Arc Welding |
3 | Rust removing | Sand blasting |
4 | Surface processing | Alkyd Paint or galvanized |
5 | Intensive bolt | Grade 10.9 |
Supporting System | Angle Brace | L50x4,Steel Q235, Process and Painting |
2 | Cross Support | Φ20, Steel Q235, Process and Painting |
3 | Belt Bar | Φ89*3, Steel Q235 Process and Painting |
4 | Small Brace | Φ12,Steel Q235 Process and Painting |
5 | Ordinary Bolt | Galvanized Bolt |
Roof | Purlin | C160*60*2.5,Steel Q235, painting and Galvanized |
2 | Out-roof Panel | Sandwich Panel or corrugated steel plate |
3 | Transparent lighting panel | 6mm thick PVC |
4 | Accessories | Glass glue, self-tapping screw etc. |
5 | Edge Cover | Made of color steel sheet thickness 0.5mm |
6 | Gutter | Made of steel sheet thickness 0.8mm |
7 | Rainspout | Φ110PVC |
Wall | Purlin | C160*60*2.5,Steel Q235, Paint |
2 | Wall | sandwich panel or corrugated steel plate |
3 | Accessories | Glass Cement, Self-tapping Screw etc. |
4 | Edge Cover | Made of color steel sheet thickness 0.5mm |
5 | Axial fan | Axial Fan |
6 | Door | Rolling door/sliding door |
7 | Window | PVC / alu / steel frame window |
8 | Crane | With or without crane in 5 tons to 20 tons |
4. Design Common Norms:
1). Steel Design Code"(GB50017-2003)
2). Cold-formed steel structure technical specifications "(GB50018-2002)
3). Construction Quality Acceptance of Steel "(GB50205-2001)
4). Technical Specification for welded steel structure"(JGJ81-2002,J218-2002)
5). Technical Specification for Steel Structures of Tall Buildings"(JGJ99-98)
Production flow
1.We have a group of professional engineers, most of whom has more than 10 years experiences in architecture field. our company has got a various of experiences in design, manufacture, installation and so on. The work staff have excellent skills. Some of them had helped customers to install the warehouse around the world.
2. We will offer one stop service. construction drawing,calculation sheet will be offered to help you get construction permit. Foundation design could be free made if you need. We could make 3D drawings to show the view. What's more, Installation drawings will be offered and Steel structure column,beams will be marked number on it to help you install.
3. We will send you extra bolts,purlins,panels incase any damage when install.
4. Efficiency is our pursuit. Every inquiry ,emails will be replied immediately. Every questions will be paid high attention.
5. We also have possessed more than 40 sets of large precise and domestically advanced processing equipments, including large gantry planing machines, automatic submerged arc welding machines, assembling machines, slitters, shot blasting machines and so on.
6.We will offer details packing list for every container when load so it will be easier to unload.
7. Form A, Form E,CO,etc are available
