Basic Info.
Model NO.
Philippine Cebu 5G
Type
H-Section Steel
Standard
GB
Trademark
Low-alloy High-tensile Structural Steel, ShineJoy
Forming
Hot-Rolled Steel
Connection Form
Bolt Connection
Member
Steel Column
Type of Steel For Building Structure
H-Section Steel
Carbon Structural Steel
Q235, Q345
Residential Wall Structure
Bottom Wall Beam
Application
Steel Workshop, Steel Structure Platform, Steel Fabricated House, Structural Roofing, Frame Part, Steel Walkway and Floor, Steel Structure Bridge
Painting
Red Lead Paint, Zinc Epoxy Paint, Anti Fire Paint
Transport Package
Standard Seaworthy
Specification
2000sqm
Origin
China
HS Code
73089000
Product Description
We have 3 BH lines to process different types of steel structure frame materials in wide size range, it covers: Hot rolled profiles( H, C, L, U O), BH(Build-up) H sections, Build up box sections, Star columns/Lattice column, Truss sections/Conveyors/ Pipe rack etc
Our workers with average experience of 8 years in steel structure materials fabrication, all welders are certified under AWS D1.1, EN1090 and AS/NZ 1554.1. Blasting to Sa2.5/SP10 according to project requirement. Fully automation equipments and half auto (CO2) welding machines are wilding performed during fabrication and processing of all our structural warehouse materials.
Project in Philippine Cebu for storage, Project name: 5G
Main material lists:
Steel frame and members of the steel structure workshop:
Main Steel Structure Frame
Workshop Roof Purlin /Wall Purlin
Workshop Roof Panel / Wall Panel
Embedded Column Bolt
Gutter & Downspout
Floor Deck & Shear Stud
Warehouse Roof Ventilation
Door & Window
Project photos:

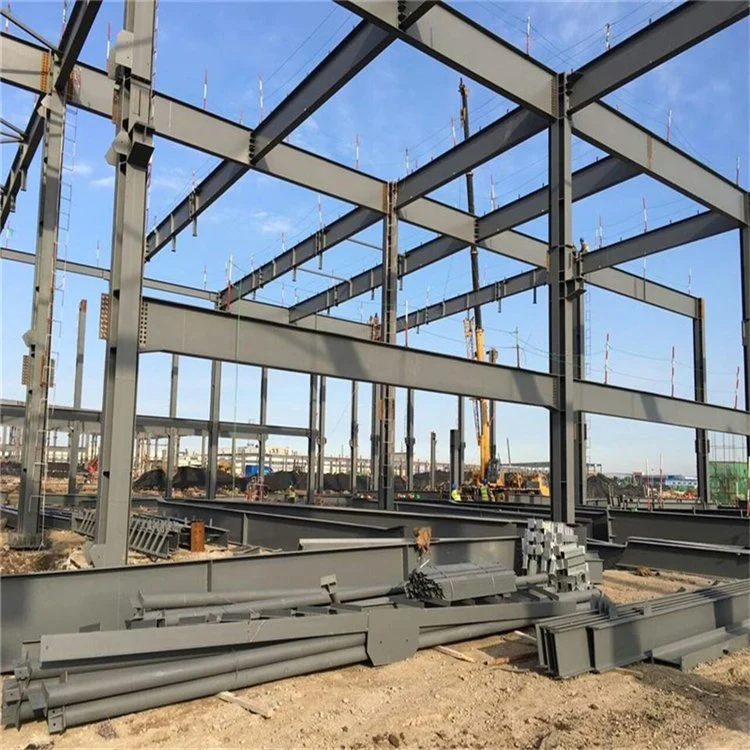

Columns and beams, purlins are already set up

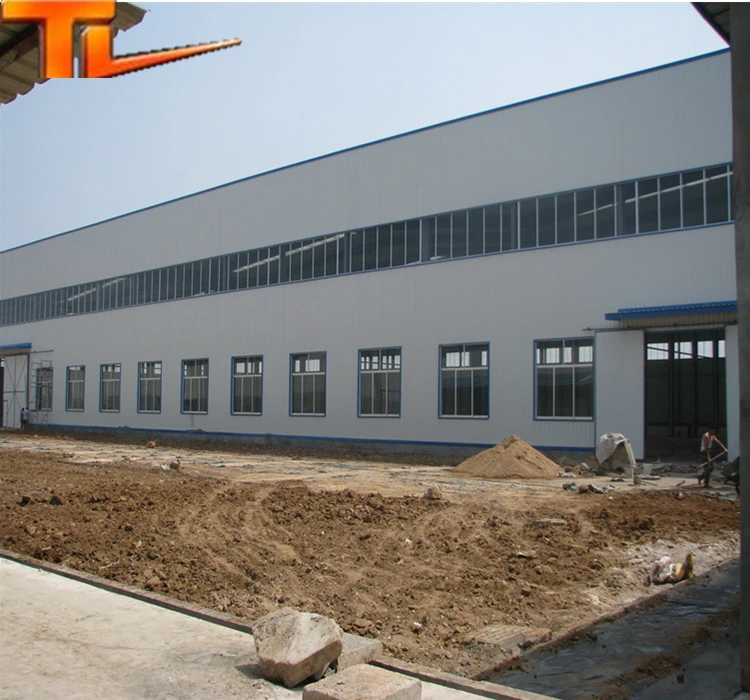

Wall Sheets and Monkey ladders installation finished
More images for references:

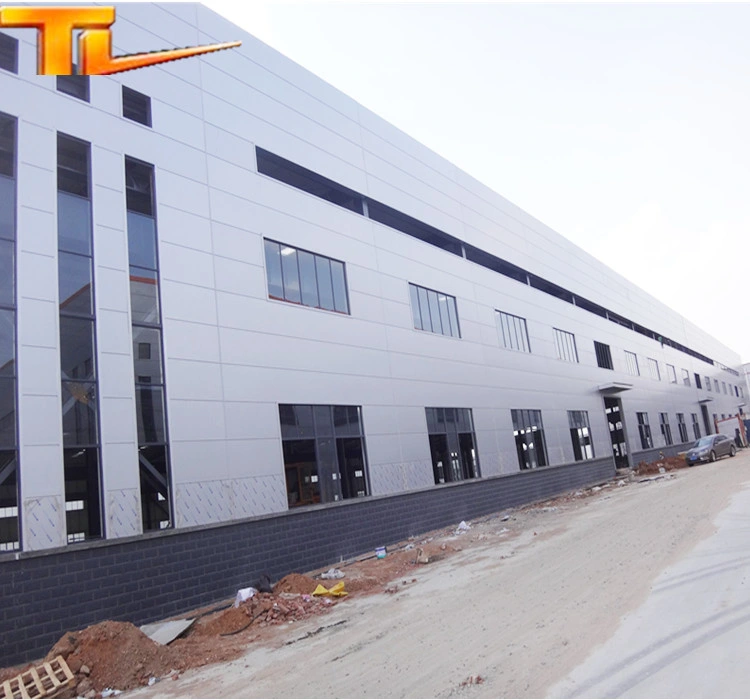

Frames for roof,wall body and ventilation area all well installed
Foundations are prepared, H beams arrived on project site, ready for setting up:
Our professional technical engineer to supervise installation on Cebu 5G project site:
Prime info required for NEW project to customize
(*This copy of requirement is provided to get comprehensive understanding of the project, initial drawing/design phase particularly*)
1. Location of the project _____ (country, area)
2. Project type (Private, Public, Partnership) _______
3. Size: Length*width*height _____mm*_____mm*_____mm; How many rooms___; Layers___
4. Wind load (max. Wind speed) _____kn/m2, _____km/h, _____m/s
5. Snow load (max. Snow height)_____kn/m2, _____mm
6. Anti-earthquake _____level
7. Brick wall height____
8. Roof & Wall System If it's sandwich panel type, please suggest. (EPS, fiberglass, mineral wool, PU sandwich panels or other, thickness, color) If it's singular metal steel sheet ,please suggest the thickness and color required. (RAL Number)________
9. Door quantity & size _____units, _____(width)mm*_____(height)mm Type______
10. Window quantity & size _____units, _____(width)mm*_____(height)mm Type____
11. Crane needed or not. If yes, _____units, max. Lifting weight ____tons; Max Lifting height _____m
12. Your preferred term FOB, CFR, CIF____
13. Logistic unloading port____
Special requirement, such as ____________________________
